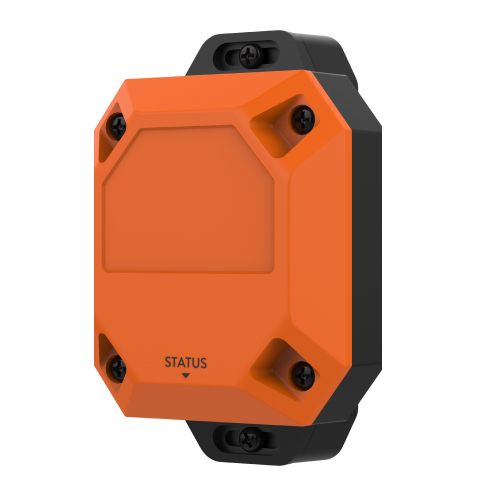

SAFE U Smart
safety beacon

Worker's indoor location monitoring protects worker by alarming when a worker fail to maintain safe distance from the other worker or hazardous facilities.

  • Usage detection

    Detect usage on the basis of workers' behavioral data

  • Durability

    Field test over 1 year

  • Waterproof and dustproof

    Certified as IP65

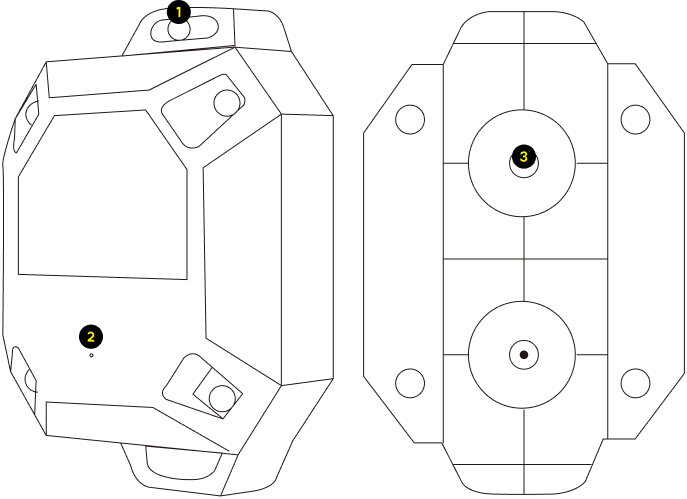

Parts name

  1. Cable tie holder
  2. Rotate the underside to detach
    (CR2032 Battery replacement)

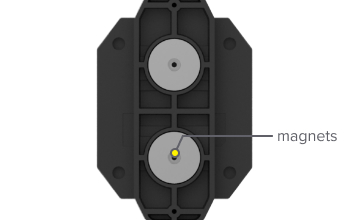

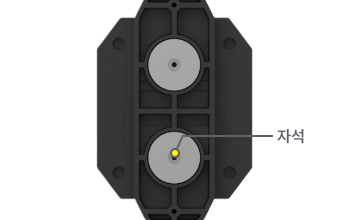

  3. Optical magnet

Mounting procedure

  1. STEP 1

    Installation using magnets.

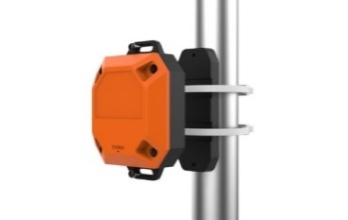

  2. STEP 2

    Installation using cable tie or wire.

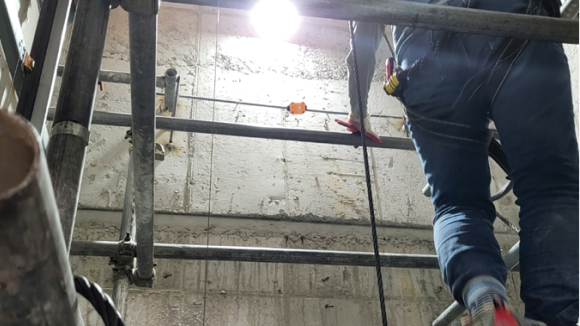

Wearing position

If the elevator is installed - rear of the center bar

If the elevator is not installed - inner wall

Specifications

  • Communication

    • Bluetooth v.5.0

  • Waterproof and dustproof

    • IP65

  • Battery

    • Battery replacement method AA*2 Battery life 439 days

  • Transmission range

    • Suitable to locate worker in high-altitude workspace RF Power 2 M
