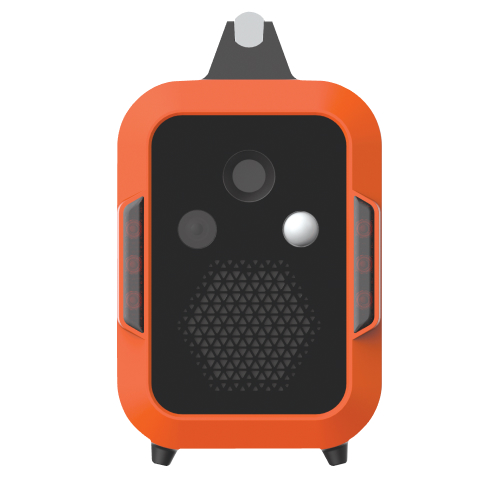

SAFE U Smart
guardian

Control hazards on sites through functions such as real-time analysis of videos from AI-based camera, flame sensor, IR sensor and broadcast speaker.

  • AIoT

    Safety monitoring using AIoT devices

  • Quality control

    Concrete quality assurance

  • Real-time

    On-site safety management

Key Features

  • Broadcasting

    Warning for equipment proximity, Warning for worker approaching hazardous area, Site guidance, Emergency broadcasting in case of urgency

  • CCTV

    Battery-operated, portable installation, mobile remote monitoring

  • IR sensor

    Motion detection, proximity detection, all-weather sensing, operable from 20°C to 60°C.

  • Fire detection

    KFI-approved flame sensor with a 90 ° field of view and a detection range of 30 meters.

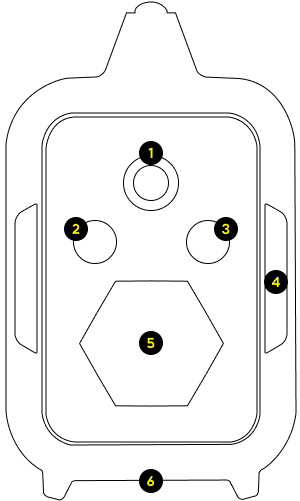

Parts name

  1. Flame sensor
  2. CCTV
  3. IR sensor
  4. Waring light
  5. Speaker
  6. Buzzer

Specifications

  • Control panel

    • CPU : ARM Cortex-M4
    • ROM/RAM : Flash 1024KB, SRAM 192KB
    • OS : FreeRTOS

  • Audio

    • Codec : MP3, WMA
    • Buzzer : 120dB
    • Etc : 20W 8Ω x 1, Sensitivity 90 dB, External AUX x 1

  • Sensor

    • Flame detection : Viewing angle 90 °, detetion range 30m
    • Motion detecton : Viewing angle 100 °, detetion range 7m(Max)

  • Camera

    • Sensor : CMOS
    • Codec : H.265/H.264
    • Resolution : 1920 x 1080,
      Max 60 fps / 50 fps (60 Hz / 50 Hz)

  • Warning light

    • LED : 4 Positions LED Module

  • Telecommunication

    • LTE : LG U Plus
      M2M plan subscription required

  • Appearance

    • Size : 180 x 309 x 260 mm (W x H x D)
    • Weight : 2.8 kg

  • Environment

    • Operating temperature : -20 ~ 60 °C

  • Power

    • Adapter type : 12/24 VDC 6.3 A (Input 220 VAC)

  • basic provision

    • Tripod

Applicable industrial sectors

Construction

Civil engineering construction

Railway construction

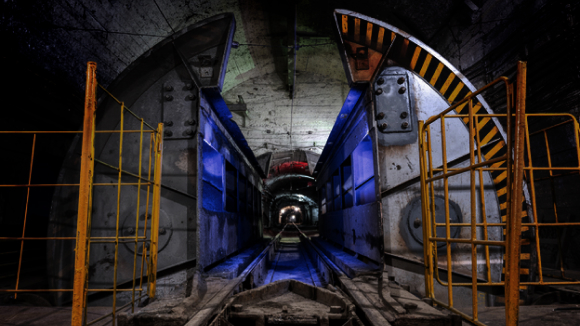

Tunnel construction

Confied space work

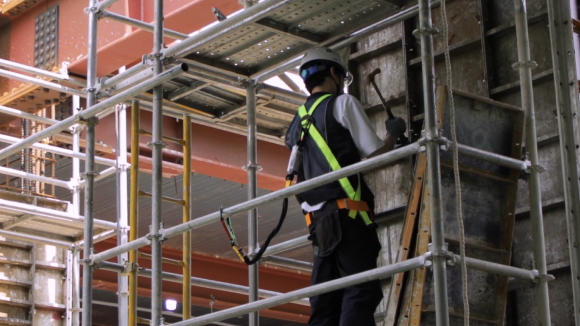

High-altitude work

Hazardous process operation

Earthwork construction
