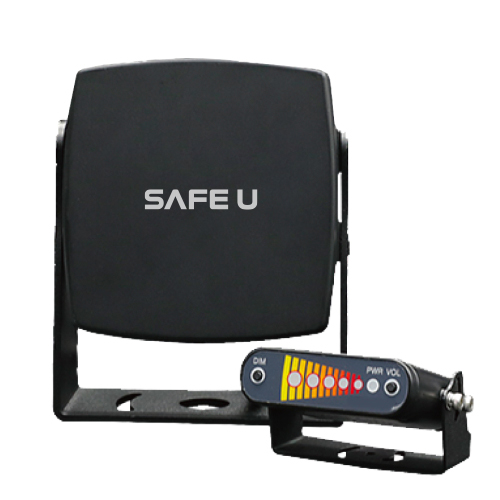

SAFE U Smart radar

Mounted with equipments, It's ultrasonic sensor detects and alarms when worker approaches danger zones to prevent accidents.

  • Ultrasonic sensor

    Exceptional detection speed using ultrasonic sensor

  • Radar sensor

    24 GHz Compact radar sensor

  • Durability

    Field-optimed durability

Key Features

  • Visual and auditory signals

    Using visual and auditory warings to alert the operator

  • Compact

    Detection through 24 GHz compact radar sensor

  • Easy to attach and detach

    Easy to attach and detach at desired location

  • Stepwise waring

    Stepwise waringings by dividing the detection area

  • Ultrasonic sensor

    Exceptional detection speed using ultrasonic sensor

  • Durability

    Durable equipment optimized for construction and industrial sites.

Specifications

  • MCU

    • Cortex M0+ / M4

  • Frequency

    • 24.06 ~ 24.22 GHZ

  • Modulation

    • FMCW

  • Power

    • 12 ~ 32 VDC

  • Current

    • 300 mA@12V

  • Boot time

    • 300 ms

  • Detection time

    • 200 ms

  • Communication

    • RS-485

  • Operating temperature

    • -40 °C ~ 85 °C

  • Certifications

    • KC, FCC, CE / 69 K

  • Tremor

    • 15 G

  • Material

    • PC

  • Size

    • 108 x 110 x 34 mm (W x H x D)

  • Weight

    • 390 g

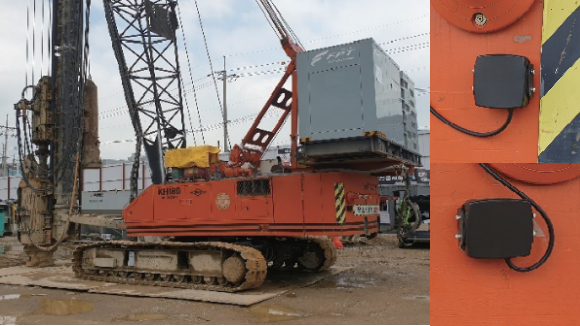

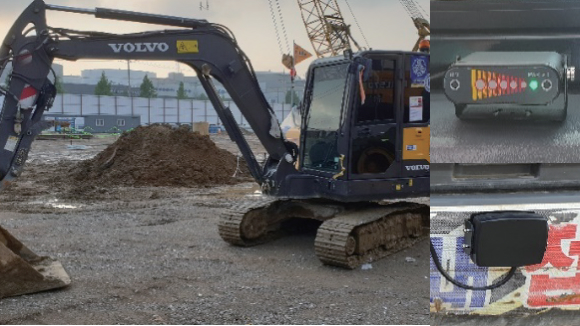

Applicable industrial sectors

Excavator(Crane)

Pile driver

SAFE U
